PN:90MB17H0-M0EAYC
PLACA BASE PRIME A520M-A II/CSM ASUS
AM4/AMD A520/ HDMI, D-SUB, DP/ mATX
PN:90MB17H0-M0EAYC
PLACA BASE PRIME A520M-A II/CSM ASUS
AM4/AMD A520/ HDMI, D-SUB, DP/ mATX
- ●Chipset: AMD A520
- ●Formato: Micro ATX
- ●Hdmi: Si
- ●Imagen Salida: Graficos en CPU, HDMI, Displayport, VGA
- ●Memoria Maxima: 128GB
- ●Microprocesador Integrado: No
- ●Multi-Grafica: No
- ●Nº Bancos De Memoria: 4
- ●Nº Conexiones SATA: 4
- ●Nº USB 2.0: 2 Traseros, 4 Internos
- ●Nº USB 3.2 Gen1: 4 Traseros, 2 Internos
- ●Pci: 1 PCIe x16 ,2 PCIe x1
- ●Raid: Si
- ●SATA 6Gb/S: 4
- ●Socket: AMD AM4
- ●Tecnologia De Memoria: DDR4
- ●Tipo De Raid: 0,1,10
- ●USB 3.0: Si
- ●USB3.1 Interno: Si
Zócalo AMD AM4: Listo para procesadores de escritorio Ryzen™ Serie 5000/ Serie 4000 G/ Serie 3000
Refrigeración integral: disipador térmico VRM, disipador térmico PCH y Fan Xpert 2+
Conectividad ultrarrápida: compatibilidad con M.2, Ethernet de 1 Gb, USB 3.2 Gen 1 tipo A
Aura Sync RGB: encabezados RGB integrados y encabezados direccionables Gen 2 para tiras LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync
ASUS Control Center Express (ACCE) para una gestión más sencilla de los terminales de TI
Especificaciones:
CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
*Refer to www.asus.com for CPU support list.
Chipset
A520
Memory
4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory*
Dual Channel Memory Architecture
*ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.2
1 x HDMI™ 2.1(4K@60Hz)
1 x D-Sub
* Graphics specifications may vary between CPU types
Expansion Slots
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support Raid 0, 1, 10
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

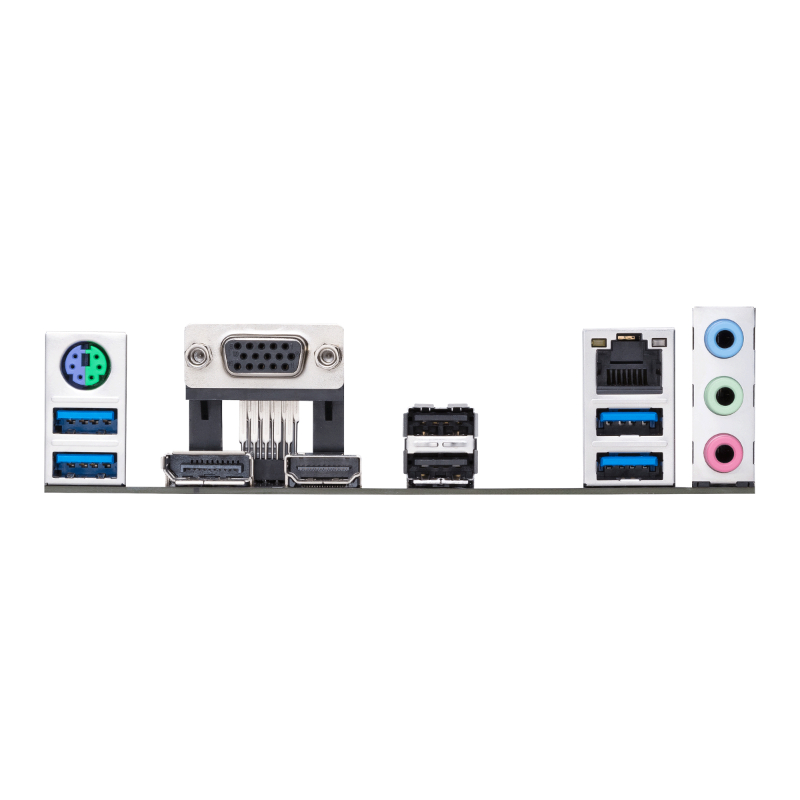

Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x D-Sub
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Form Factor
microATX
24.4cm x 24.4cm
